Combined Application of Anti-Caking Oil and Powder for Drum Granulation NPK Compound Fertilizer

Key Advantages:
Low Dosage, Dyeable, Customizable

Overview

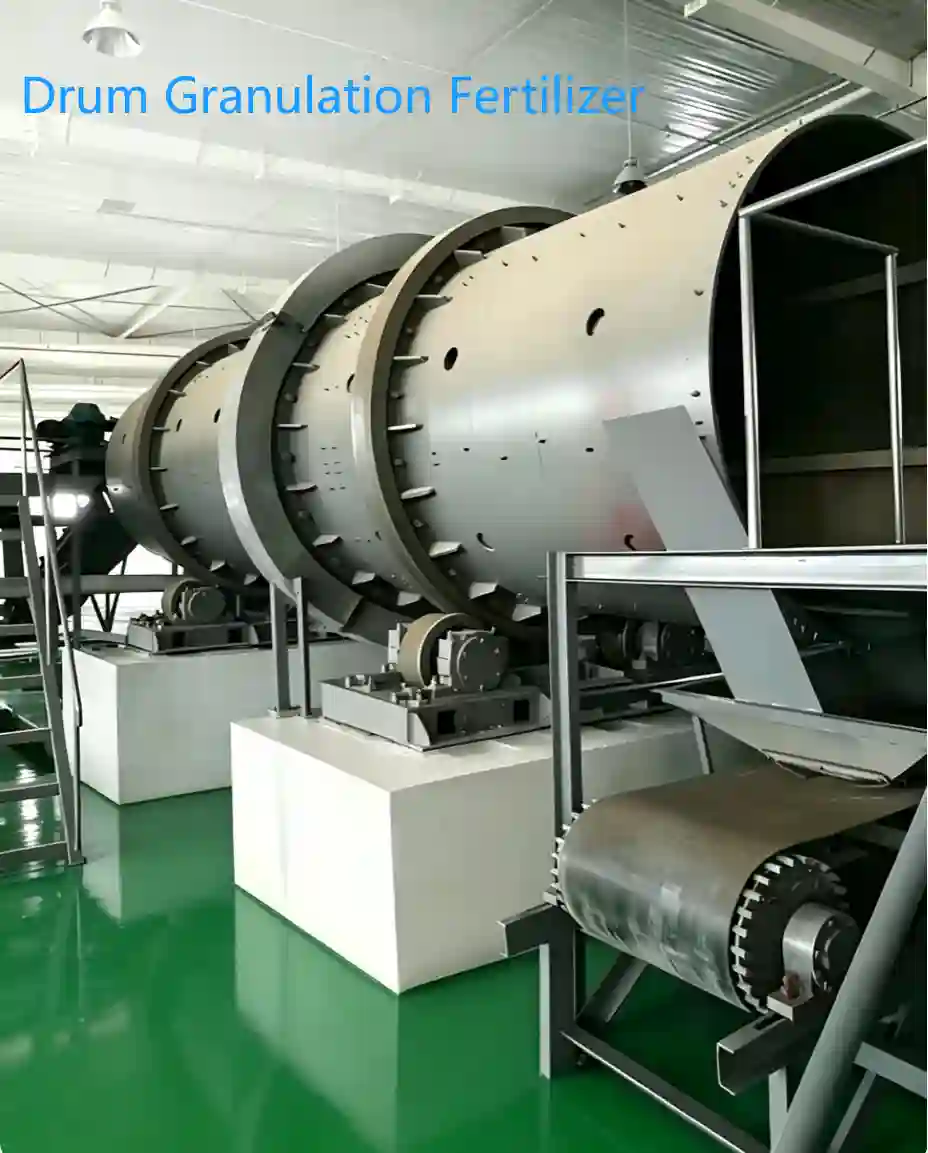

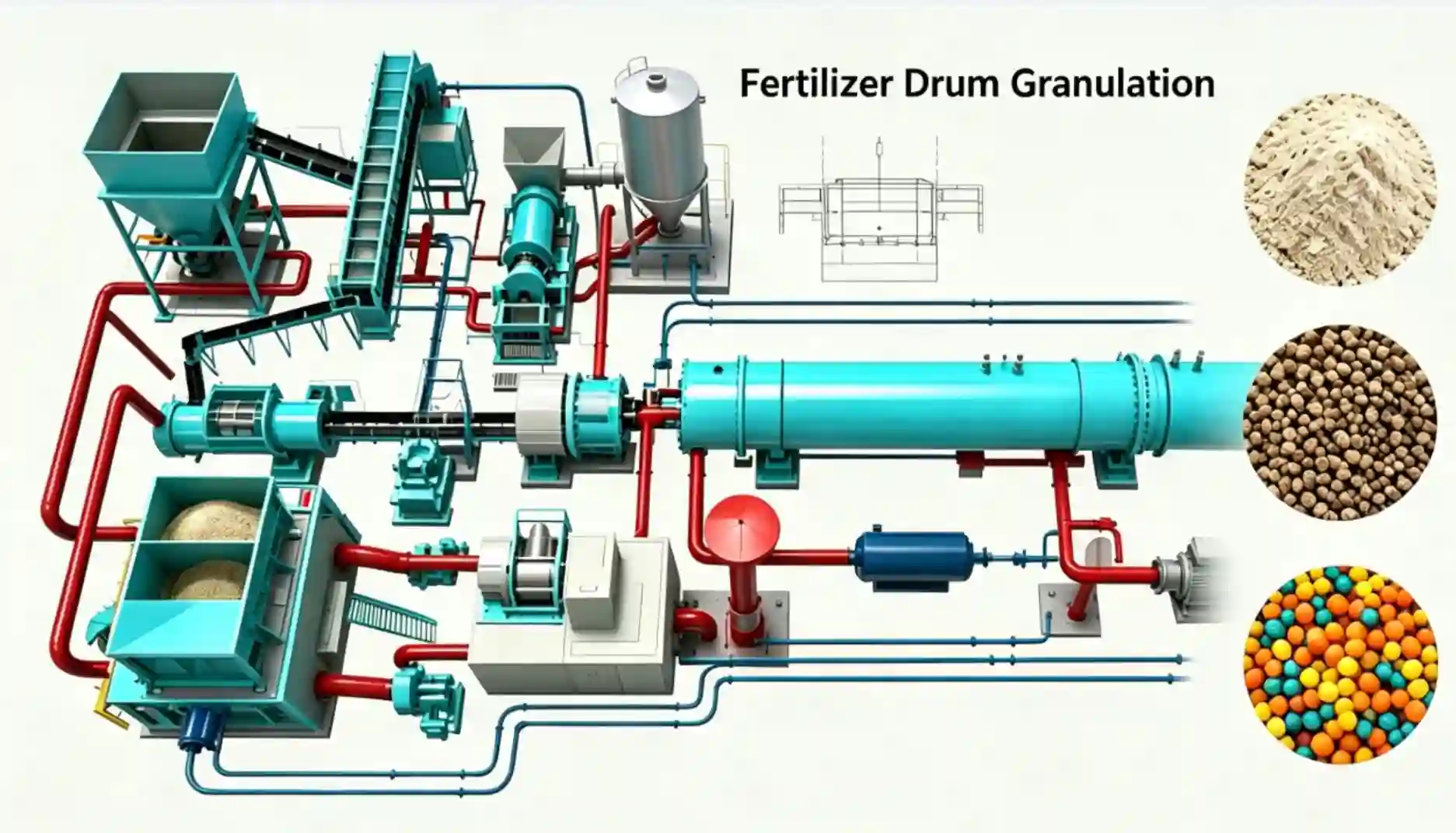

Drum granulation is one of the most versatile and high-capacity mainstream production processes in the compound fertilizer industry, widely used in the production of sulfur-based, chlorine-based, high-nitrogen and functional compound fertilizers. Due to its technological characteristics, drum granulation fertilizer features a loose particle structure, numerous micropores and a large specific surface area, resulting in stronger moisture absorption compared with fertilizers produced by other processes. It is prone to moisture reabsorption, particle adhesion, crystal bridge growth and massive caking under high-temperature and high-humidity conditions, long-term warehouse stacking and long-distance maritime transportation, which directly affects fertilizer appearance, fluidity and finished product qualification rate. To thoroughly solve the caking problem of drum granulation compound fertilizer, the most mature and stable industrial solution currently is the synergistic compound application of fertilizer anti-caking oil and anti-caking powder. Adopting a dual protection system of "oil film water-locking and powder isolation anti-sticking", it fundamentally inhibits fertilizer moisture absorption and caking. Meanwhile, the colored anti-caking powder enables fertilizer coloring and grading, helping fertilizer manufacturers achieve differentiated product upgrading.

Standard Dosage of Anti-Caking Agent for Drum Granulation Compound Fertilizer

According to the working conditions of conventional drum granulation production lines, combined with the humidity environment in different regions and export storage requirements, a standardized and practical oil-powder matching dosage system has been formed, suitable for most domestic and new-type drum granulation compound fertilizer production lines:

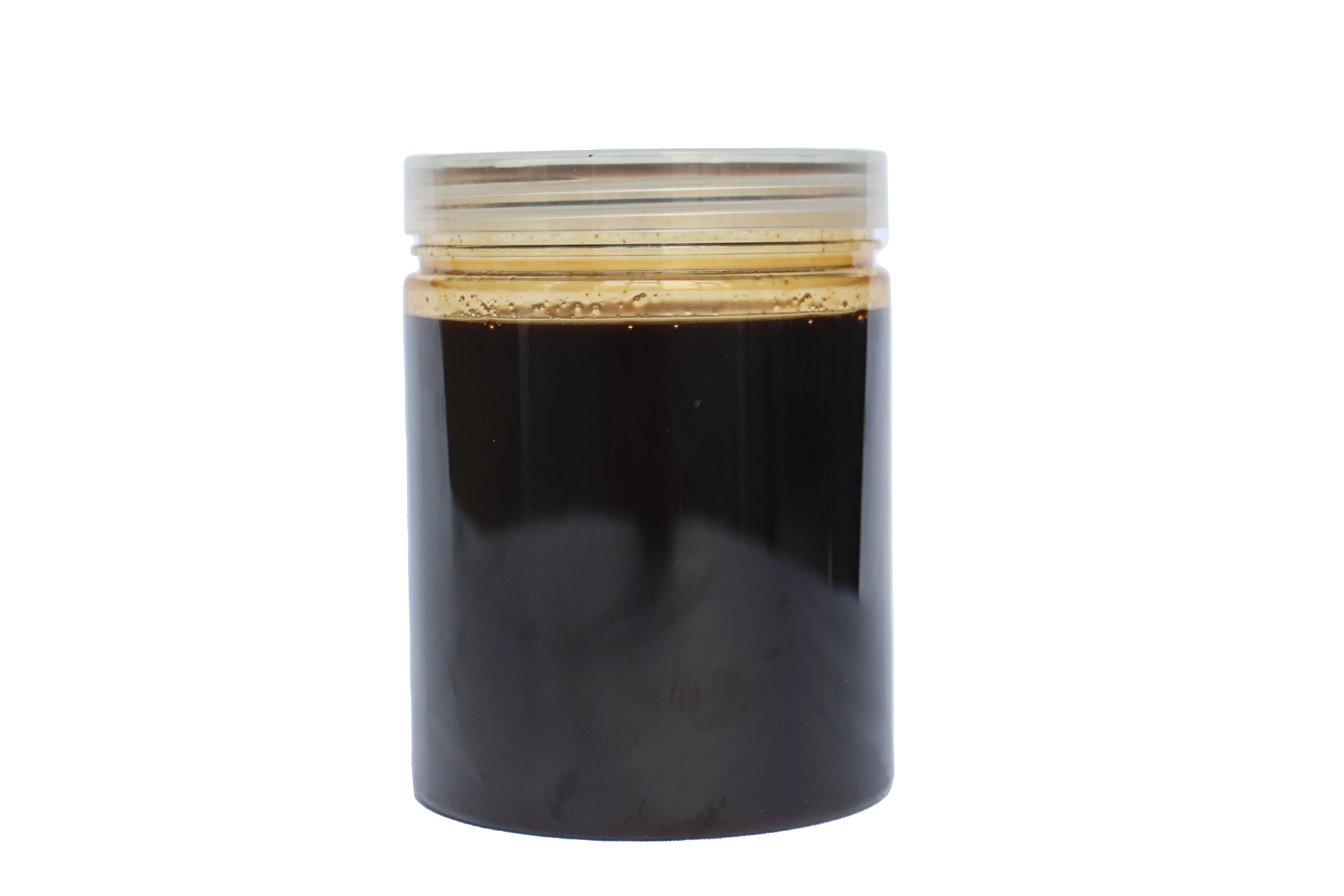

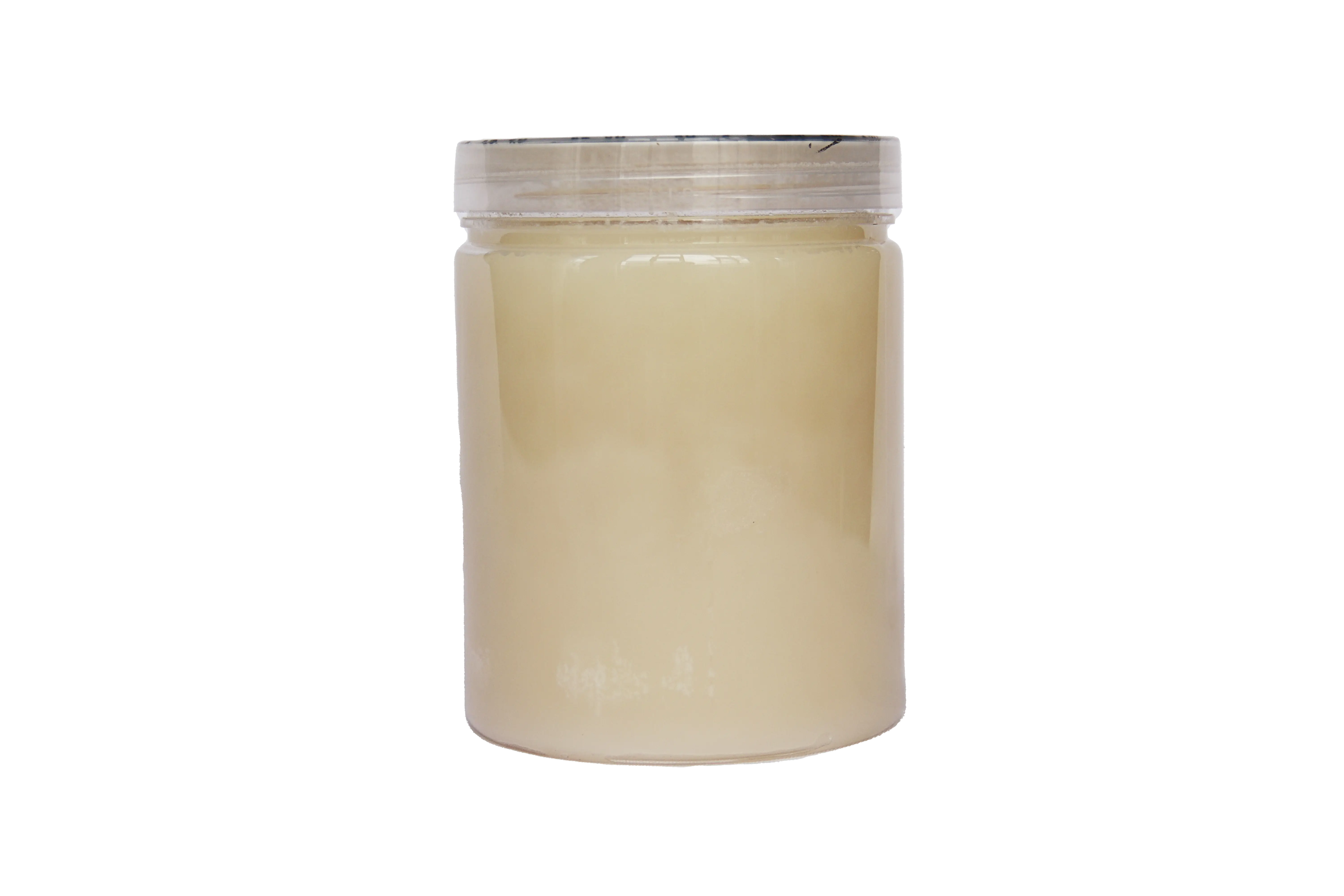

• Anti-caking oil dosage: 1.8–2.2kg per ton of compound fertilizer. It features excellent fluidity and uniform atomization spraying, which can quickly form a dense hydrophobic protective film on the surface of fertilizer particles, seal particle micropores, block external water vapor penetration, and adapt to continuous large-scale production.
• Anti-caking powder dosage: 3–4kg per ton of compound fertilizer. The powder has uniform fineness and strong adhesion, with no dust, no screen blockage and no equipment adhesion. It can firmly attach to the outer layer of the oil film to form a physical isolation layer and prevent particle adhesion and aggregation.

The anti-caking oil locks moisture and blocks moisture absorption channels, while the anti-caking powder provides physical isolation and inhibits crystal bridge formation. The combined dual-effect greatly extends the anti-caking cycle of fertilizers. Meanwhile, the colored anti-caking powder has excellent coloring performance, which can evenly brighten and unify the color of fertilizer particles. It serves dual functions of anti-caking and product grading with high cost performance.

Core Advantages

• Low Dosage & High Cost Performance, Lower Comprehensive Production Cost: Compared with traditional single anti-caking agents that require high dosage, the compound oil-powder system adopts a scientific proportion and high efficiency. It can achieve long-term anti-caking effects without excessive addition, effectively reducing the fertilizer treatment cost per ton. It is suitable for large-scale mass production of compound fertilizer factories and brings significant long-term economic benefits.
• Strong Process Adaptability, Specially Designed for Drum Granulation Compound Fertilizer: Developed targeting the loose and porous particle characteristics of drum granulation fertilizer, it perfectly matches the spraying and coating processes of various drum granulation production lines. It solves the common industry problems of poor adaptability, unstable anti-caking effect and partial caking of traditional anti-caking agents.
• Long-Lasting Anti-Caking Performance, Suitable for Complex Storage & Maritime Export Scenarios: The dual protection system delivers stable performance, effectively coping with high-temperature and high-humidity environments in southern regions, multi-layer warehouse stacking, long-term storage and cross-border ocean transportation. It completely avoids fertilizer moisture caking and particle hardening, ensuring stable quality of finished fertilizers throughout the whole process.

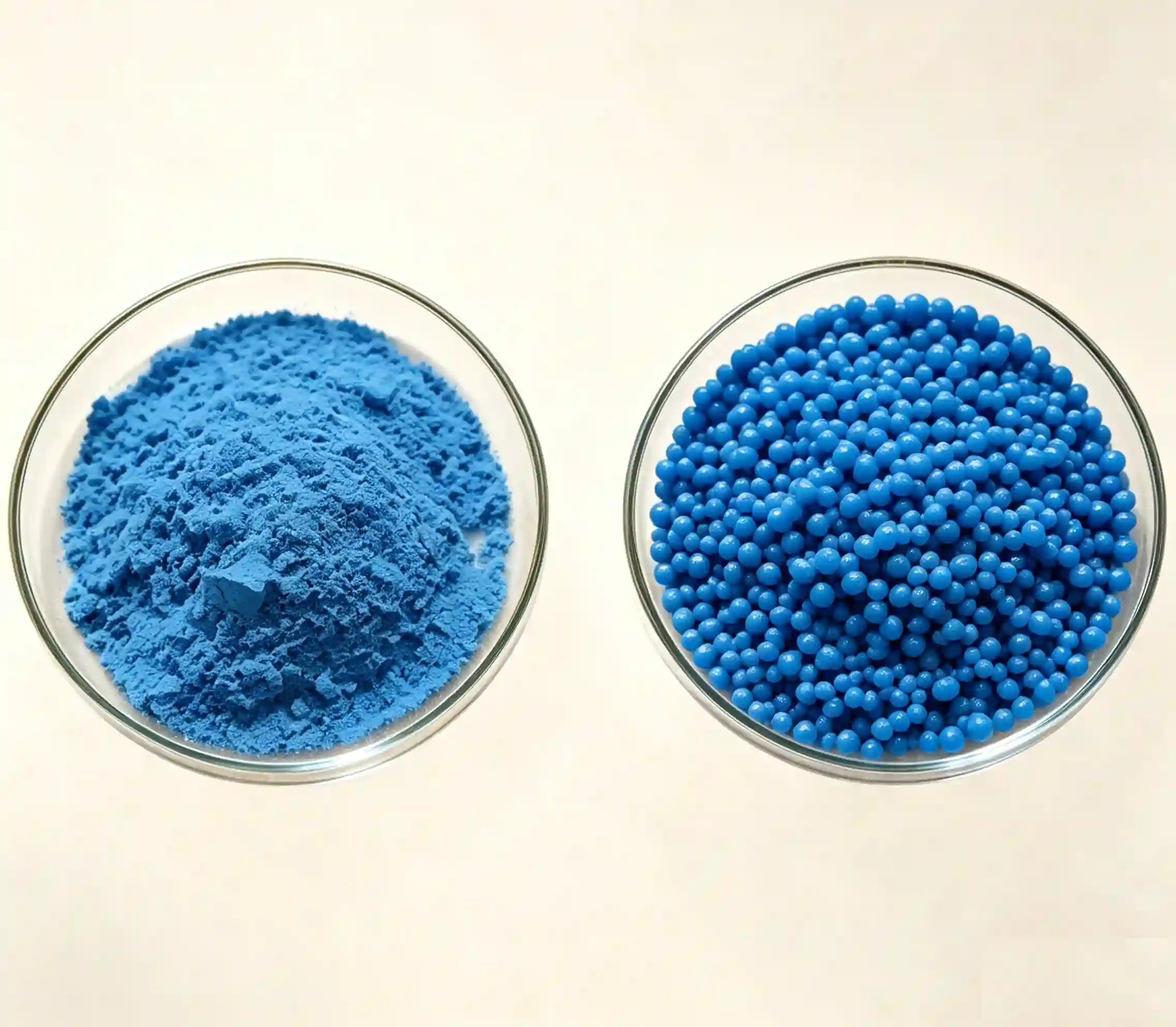

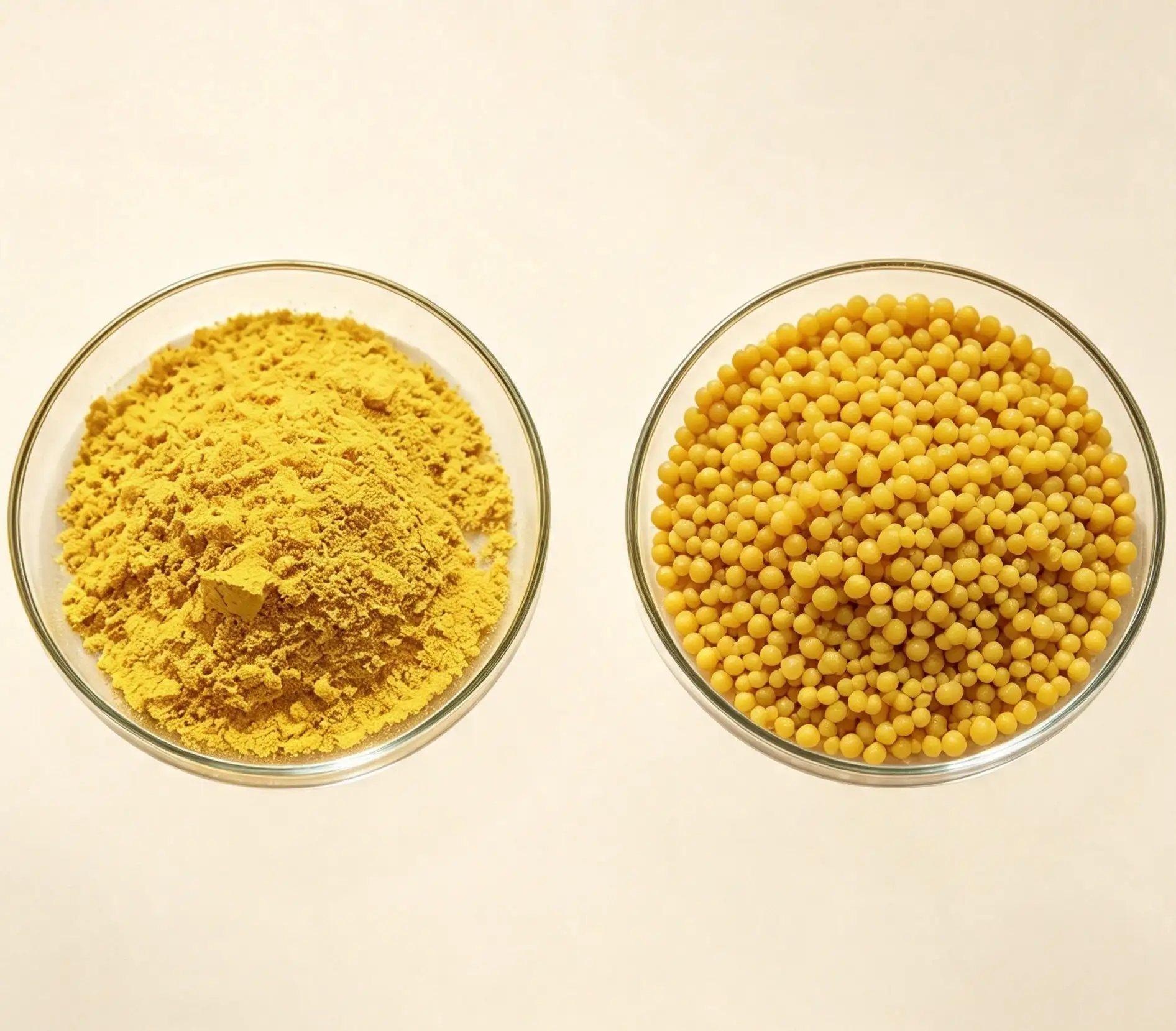

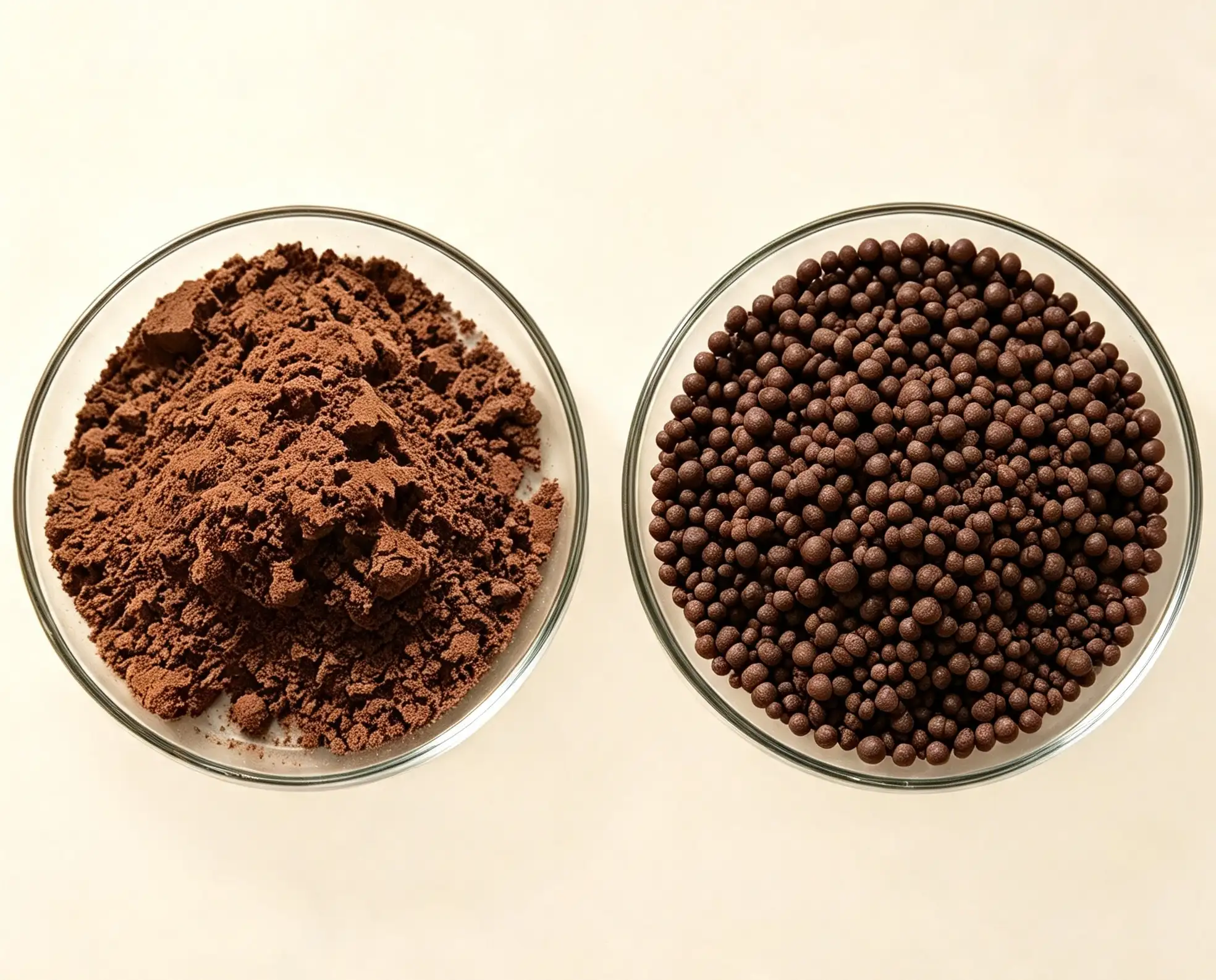

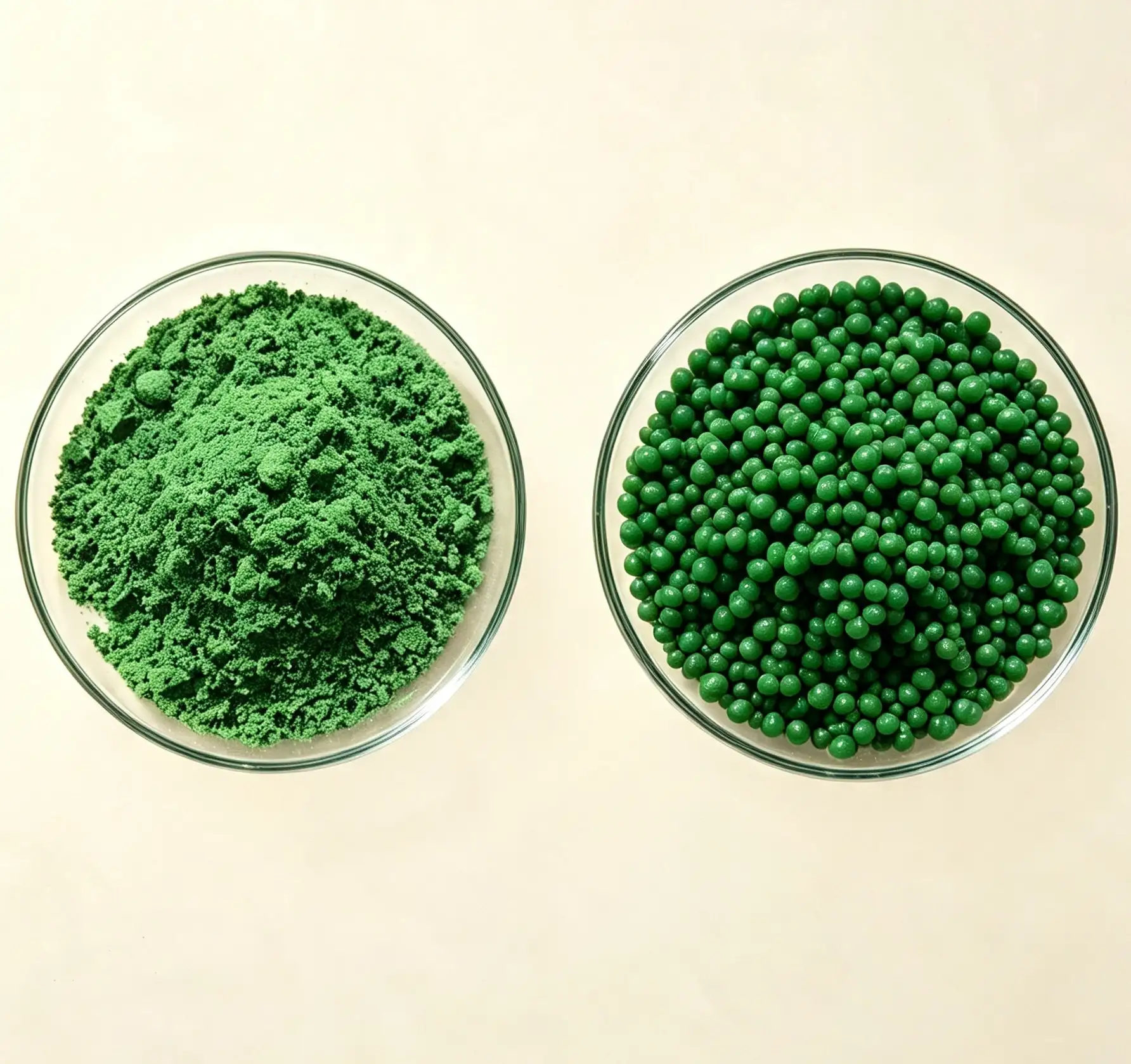

• Uniform Coloring & Beautiful Appearance, Realize Differentiated Fertilizer Grading: The colored anti-caking powder features uniform coloring and durable adhesion. It can produce fertilizer particles in different colors according to product positioning, quickly distinguish compound fertilizer products with different nutrient contents, formulas and grades, and improve product appearance and market recognition.
• Customizable Formula & Color, Adaptable to Different Fertilizer Working Conditions: We can customize the anti-caking agent formula according to customers’ fertilizer formulas, raw material characteristics, production processes, regional climate conditions and storage cycles. Custom powder colors and packaging specifications are also available to precisely meet the production needs of different manufacturers.
• Nutrient-Safe & High Compliance: Both the oil and powder adopt neutral and environmentally friendly formulas without harmful impurities. They will not damage nitrogen, phosphorus and potassium nutrients, change the physical and chemical properties and water solubility of fertilizers, or affect fertilizer efficiency, complying with national safety and export standards for compound fertilizer production.
• Good Production Line Compatibility, No Impact on Production Efficiency: The product has excellent fluidity with smooth spraying and uniform coating. It will not block nozzles, adhere to drum granulators or block screening equipment during production. There is no need to modify the original production line, and it can be directly applied to continuous production of new and old drum granulation equipment.

Scope of Application

This synergistic oil-powder anti-caking solution is widely applicable to all types of drum granulation compound fertilizers, including sulfur-based compound fertilizer, chlorine-based compound fertilizer, high-nitrogen compound fertilizer, medium and trace element compound fertilizer, and export customized compound fertilizer. It is suitable for factory continuous mass production, seasonal centralized stockpiling, long-term warehouse storage, sales in high-temperature and high-humidity areas, cross-border maritime export and other production and storage scenarios, serving as the most universal and reliable anti-caking solution for drum granulation compound fertilizer.

Application Summary

The compound solution of 1.8–2.2kg anti-caking oil per ton fertilizer + 3–4kg anti-caking powder per ton fertilizer has become the mainstream choice for compound fertilizer factories, featuring low dosage, low cost, high adaptability, long-term anti-caking effect and customizable coloring and formula. The dual protection system fundamentally solves the problem of fertilizer moisture absorption and caking. Meanwhile, colored powder realizes product appearance upgrading and grade classification, and customized formulas adapt to diverse production conditions. It helps fertilizer manufacturers reduce costs, improve efficiency and build differentiated product advantages, fully meeting the high-quality production demands for domestic sales and foreign trade exports.

Precautions for Use

1. Strictly Control Dosage: Follow the standard proportion during the production of drum granulation compound fertilizer, with anti-caking oil controlled at 1.8–2.2kg per ton and anti-caking powder at 3–4kg per ton. Appropriately increase the dosage for high-humidity and maritime export environments, and adjust slightly downward for dry inland areas to avoid anti-caking failure caused by insufficient dosage or cost waste caused by excessive addition.

2. Standardize Addition Sequence and Process: Spray the anti-caking oil first to form a uniform hydrophobic oil film on the fertilizer particle surface, and then carry out powder coating to ensure firm powder adhesion and complete double-layer protection. Reversing the addition sequence is prohibited to prevent powder falling off and reduced protection effect, adapting to the continuous operation requirements of drum granulation production lines.

3. Adjust According to Production Conditions: For special formula compound fertilizers such as high-nitrogen, high-sulfur and high-chloride fertilizers, as well as production scenarios with high temperature and high humidity or long-term storage and export, adjust the anti-caking formula in advance and optimize the proportion to improve moisture and adhesion resistance, adapting to the caking characteristics of different fertilizers.

4. Standardize Storage and Feeding: Store anti-caking oil and powder in a sealed, dry and cool warehouse, avoiding moisture, sunlight exposure and low-temperature solidification. Keep the equipment clean and unobstructed during feeding to prevent impurity mixing and blockage of granulators, nozzles and screening equipment, ensuring stable operation of the production line.

5. Match Custom Colors with Fertilizer Grades: Fix the corresponding color matching scheme for different fertilizer grades when using colored powder for dyeing and grading. Unify the coloring standard to avoid color difference between different batches, ensure consistent product appearance and improve market recognition.
